Digital Full Color SK9822A EC20 Built-in IC Addressable Full Color LED2020 DC5V CLK+DAT Dual Signal Transmission LED Chips

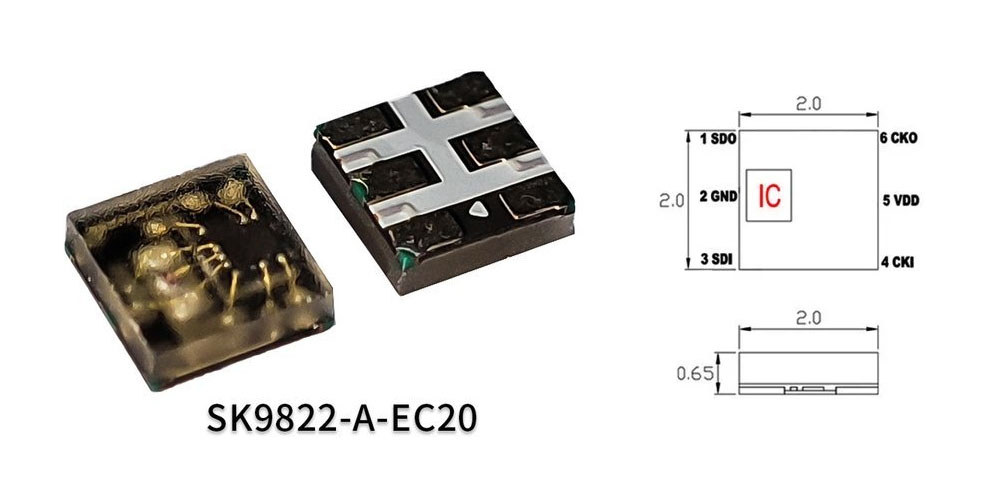

SK9822A EC20 Built-in IC Programmable Smart LED Chip is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 2020 LED chip, CLK+DAT Dual Signal Transmission.
EC LEDs are internally integrated with high-quality serial cascaded constant-current ICs;
2.5 V power applications; Default power-on does not light up
Three-way constant current drive, specific signal self-detection function
Maximum serial input data frequency 30MHZ
Dual-wire data transmission, and built-in oscillation support uninterrupted PWM output, which can keep the picture still
Technical Parameters:
Product Name:
SK9822A EC20 Built-in IC CLK+DAT Programmable Smart LED Chips
Model NO.:
SK9822A-EC20
Size(mm):
20x20x0.65
Bracket and wires:
Copper bracket, Pure gold wires
Working voltage:
DC5V
Power Consumption:
0.2W
Rated current(mA):
20
Lumen:
12
Color:
RGB Full-color
ESD:
4000V
SMD Brand:
SANAN
PMW:
30MKbps
Features:
Top SMD internal integrated high-quality external control line serial cascade constant current IC;
Control circuit and the RGB chip in SMD 3535 components, to form a complete control of pixel, color mixing uniformity and consistency;
Built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;
The built-in power-on reset and reset circuit, the power does not work;
The gray level adjusting circuit (256-level gray scale adjustable);
Red drive special treatment, color balance;
Line data transmission;
Plastic forward strengthening technology, the transmission distance between two points over 10M;
Using a typical data transmission frequency of 30MKbps, when a refresh rate of 30 frames per sec

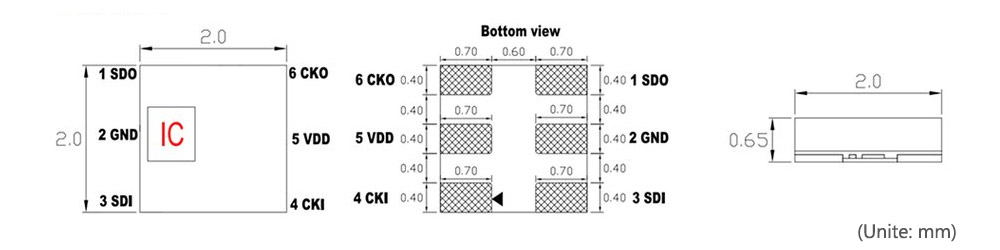

PIN Configuration:
NO.
Symbol
Function description
1
SDO
Control data signal output
2
GND
Ground
3
SDI
Control data signal input
4
CKI
Clock data signal input
5
VDD
Power supply LED
6
CKO
Clock data signal output
Application:
● Full color LED string light, LED full-color module, LED super hard and soft lights, LED guardrail tube, LED appearance/scene lighting ● LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical equipment, etc...
The typical application circuit:
Electrical parameters: (TA=25℃, VSS=0V)
Parameter
Symbol
Range
Unit
Power supply voltage:
VDD
+3.7 to +5.5
V
Logic input voltage:
V-in
-0.3 to VDD+0.3
V
Working temperature:
Topt
-40 to +85
℃
Storage temperature:
Tstg
-50 to +150
℃
ESD Pressure (HBM):
V-ESD
4000
V
ESD Pressure (DM):
V-ESD
200
V
Electrical/Optical Characteristics:
Color
Dominate wavelength (mm)
Luminance (mcd)
Luminous flux (lm)
Red
620-625
300-500
0.8-2.0
Green
520-530
400-700
2.0-3.5
Blue
460-470
100-300
0.5-1.5
The IC electrical parameters (TA=-20 to +70℃, VDD=4.5 to 5.5V, VSS=0V)
Single point single control: realize color change and infinite cascading to the lower level through a communication protocol. Lamp driver in one: The light-emitting chip and driver communication IC are combined into one to form a new light source, requiring fewer passive components. Uniform light source: low light consumption, high brightness, and delicate light source effect. Intelligent external control: Write data through an external controller to achieve changes in internal communication IC effects. Convenient connection: Various peripherals realize wireless drive control connection according to the protocol (such as mobile phone APP/infrared controller, etc.). Lower energy consumption: powerful functions, lower power consumption, greener and more environmentally friendly, and longer service life.
