SK6812-3535 Thin Version MINI is a smart LED control circuit and light emitting circuit in one controlled LED source, which has the shape of a 3535 LED chip.

Each lighting element is a pixel, and the intensities of the pixels are contained within the intelligent digital interface input. The output is driven by patented PWM technology, which effectively guarantees high consistency of the color of the pixels.

The control circuit consists of a signal-shaping amplification circuit, a built-in constant current circuit, and a high-precision RC oscillator. The data protocol being used is unipolar RZ communication mode.

The 24-bit data is transmitted from the controller to the DIN of the first element, and if it is accepted it is extracted pixel to pixel. After an internal data latch, the remaining data is passed through the internal amplification circuit and sent out on the DO port to the remaining pixels. The pixel is reset after the end of DIN. Using automatic shaping forwarding technology makes the number of cascaded pixels without signal transmission only limited by signal transmission speed.

The LED has a low driving voltage (which allows for environmental protection and energy saving), high brightness, scattering angle, good consistency, low power, and long life. The control circuit is integrated into the LED above.

Features:

• Top SMD internal integrated high-quality external control line serial cascade constant current IC;
• Control circuit and the RGB chip in SMD 3535 components, to form a complete control of pixel, color mixing uniformity and consistency;
• Built-in data shaping circuit, a pixel signal is received after wave shaping and output waveform distortion will not guarantee a line;
• The built-in power-on reset and reset circuit, the power does not work;
• The gray level adjusting circuit (256-level gray scale adjustable);
• Red drive special treatment, color balance;
• Line data transmission;
• Plastic forward strengthening technology, the transmission distance between two points over 10M;
• Using a typical data transmission frequency of 800 Kbps, when a refresh rate of 30 frames per sec

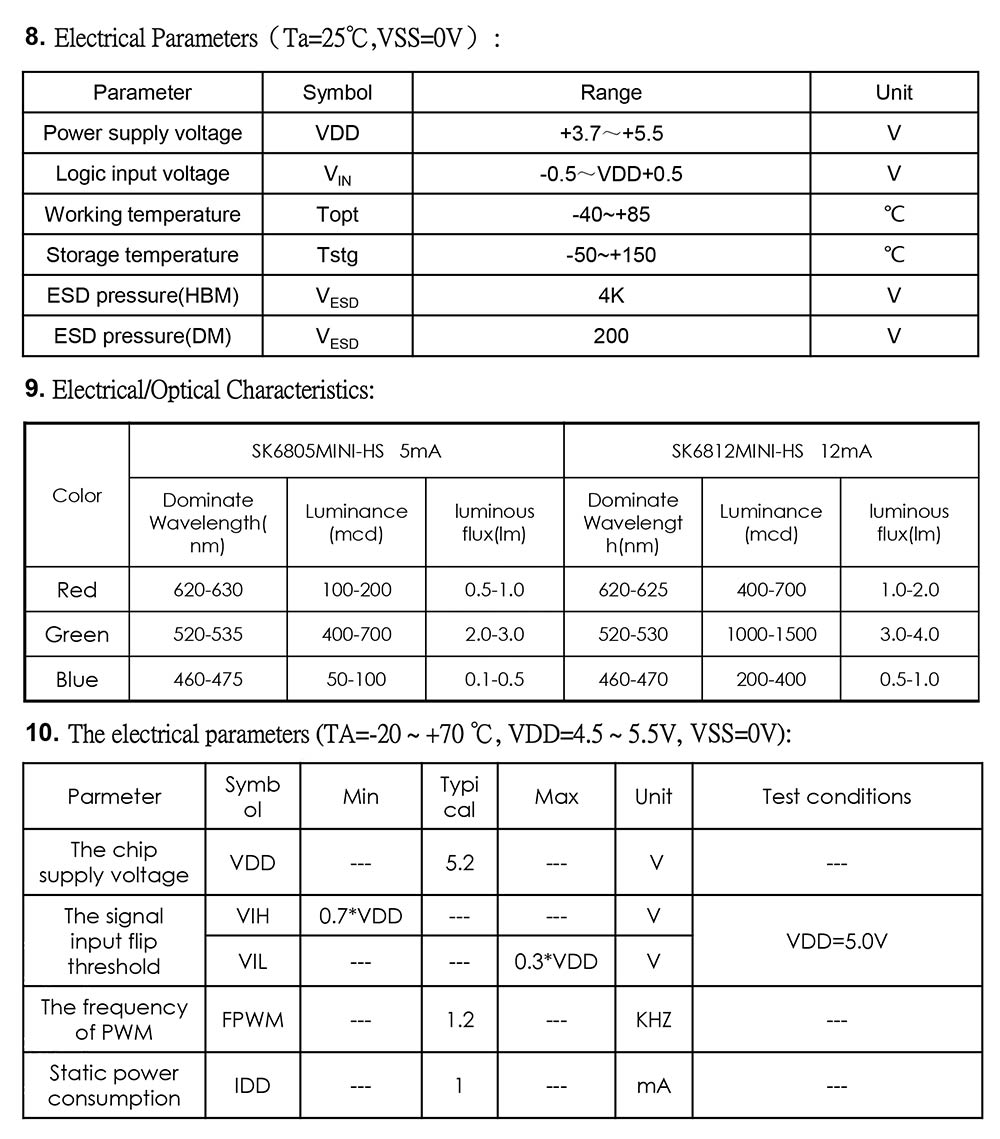

Technical Parameters

Product:	Black Mask SK6812 3535 Mini RGB Digital LED Chips
Item No.:	SK6812-3535-4PB
Size: (mm)	3.5x3.5x0.95
Working Voltage:	DC5V
Power:	0.2W, 20mA
Color:	RGB Full-color
Data transmission frequency:	800Kbps @30frames/sec
Gray level:	256
Bracket and wires:	Copper bracket, Pure gold wires
ESD:	4000V
SMD Brand:	SANAN
Default Packing:	-- kpcs/bag

Application:

● Full color LED string light, LED full-color module, LED super hard and soft lights, LED guardrail tube, LED appearance/scene lighting
● LED point light, LED pixel screen, LED shaped screen, a variety of electronic products, electrical equipment, etc...

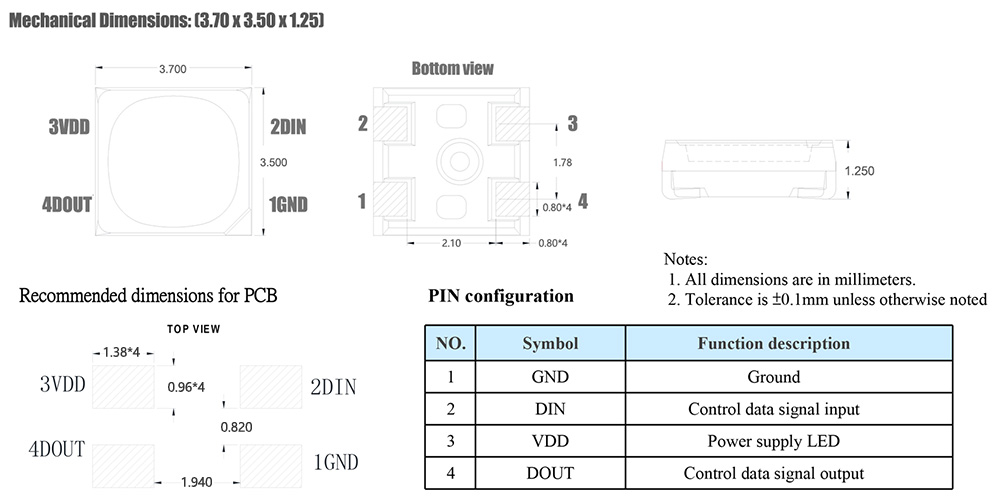

Size, Recommended dimensions for PCB products and PIN configuration:

Six Advantages:

单点单控：通过通讯协议实现颜色变化及向下级无限级联。
灯驱合一：发光晶片与驱动通讯IC合二为一组合新型光源，更少被动器件使用。
光源均匀：低光耗，亮度高，光源效果细腻。
智能外控：通过外部控制器写入数据，以实现内部通讯IC效果变幻。
连接便捷：各类外设依协议实现无线驱动控制连接 (如手机APP/红外控制器等)。
更低能耗：功能强大，耗电更低，更绿色环保，使用寿命更长。

Single point single control: realize color change and infinite cascading to the lower level through a communication protocol.
Lamp driver in one: The light-emitting chip and driver communication IC are combined into one to form a new light source, requiring fewer passive components.
Uniform light source: low light consumption, high brightness, and delicate light source effect.
Intelligent external control: Write data through an external controller to achieve changes in internal communication IC effects.
Convenient connection: Various peripherals realize wireless drive control connection according to the protocol (such as mobile phone APP/infrared controller, etc.).
Lower energy consumption: powerful functions, lower power consumption, greener and more environmentally friendly, and longer service life.
